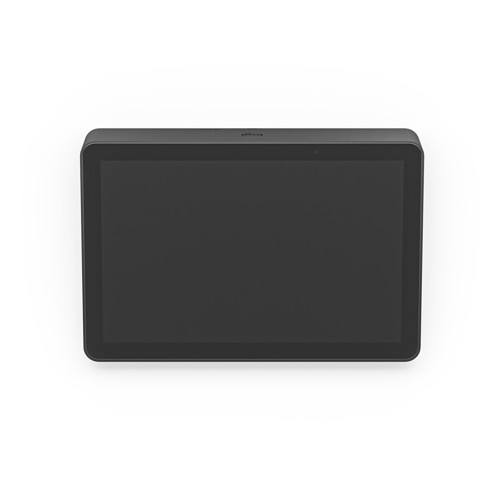

DEPLOY ROOM SOLUTIONS WITH EASE Transform collaboration spaces with Logitech Tap IP and leading video conferencing room solutions. Deliver one-touch join, easy content-sharing, and a seamless meeting experience across all rooms. JUST THE RIGHT PRESENCE With a spacious 10.1” display, low profile, and motion sensor for always-on readiness, Tap IP has a sleek and unobtrusive presence in the room. SIMPLE AND SECURE CABLING Streamline setup with a single cable that can be routed through the back or below the device. Keep connections tight with built-in strain relief and retention mechanisms. MULTIPLE MOUNTING OPTIONS Install Tap IP almost anywhere in the room with Table and Riser Mounts that fit standard table grommets and rotate 180° for visibility and convenience. Or save table space in small rooms with the Wall Mount. SINGLE CABLE SIMPLICITY With a single Power over Ethernet cable, place Tap IP conveniently near room participants for a tidy and professional install. PAIRS WELL WITH PARTNERS Enable easy and effective meetings for onsite and remote workers. Tap IP and the Logitech suite of room solutions integrate with leading video conferencing services for a seamless meeting experience. SIMPLE TO MANAGE WITH LOGITECH SYNC With Logitech Sync, you can monitor and manage Tap IP along with your other meeting room devices from one single platform.

• Tap IP Touch Controller
• Documentation

Logitech 2 year limited hardware warranty

DIMENSIONS Height: 2.21 in (56.1 mm) Width: 9.69 in (246.2 mm) Depth: 6.74 in (171.3 mm) Weight: 2.2 lbs (1 kg) Screen Size: 10.1” (256.54 mm) diagonal IPS (In-Plane Switching) LCD Panel with LED Backlighting Resolution: 1280 x 800 resolution Touch: Capacitive, 10 points multi-touch Brightness: 400 nits Contrast: 1000:1 Anti Fingerprint: Oleophobic coating Viewing angle: 85 degrees (U/D/L/R) Position angle: 14 degrees General Specifications Integrated ultrasonic speaker Integrated PIR Motion Sensor Integrated accelerometer Integrated ambient light sensor 100 mm x 100 mm VESA FDMI Internal cable retention and strain relief system Power and Cables Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device. 2Requires PoE enabled network or PoE Injector and ethernet cable (Not included) PORTS AND INTERFACES Ethernet: 10/100 Mbps WiFi: 802.11a/b/g/n/ac Bluetooth 5.0 Environmental Operating Temperature: 0 to 40°C Stored Temperature: -40 to 70°C Humidity: 10 to 95% Security Full Disk Encryption: AES-128 Data Encryption: Symmetric Keys, PKI Device Identity: Protected by device attestation Key Protection: Arm TrustZone, RPMP Device Security: Kensington Lock Sustainability Graphite plastics: 56% post-consumer recycled material Certified carbon neutral

Logitech Tap IP is certified or compatible as a touch controller for video conferencing room solutions Microsoft Teams Rooms on Android on Logitech Rally Bar, Rally Bar Mini or RoomMate Zoom Rooms (any) Logitech CollabOS platform Logitech Sync Remote Management

Data Sheet
