Description
DEPLOY ROOM SOLUTIONS WITH EASE

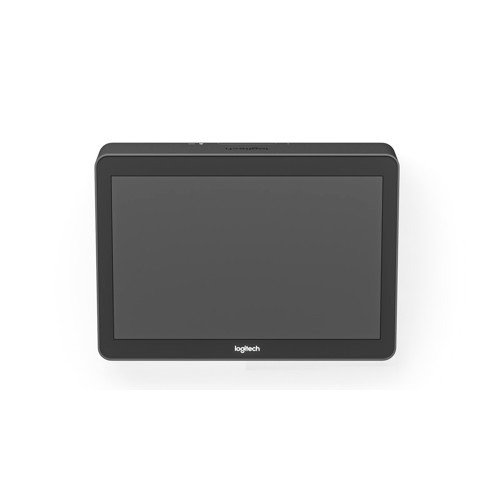

Transform your space into a Google Meet meeting place or a Microsoft Teams Rooms on Windows with Logitech
Tap. Deliver one-touch join, calendar integration, easy content-sharing, and a consistent experience across
all rooms.
JUST THE RIGHT PRESENCE
With a spacious 10.1” display, low profile, and motion sensor for always-on readiness, Tap has a sleek and
unobtrusive presence in the room.
SIMPLE AND SECURE CABLING
Route cables out the back or through the bottom. Keep connections tight with built-in strain relief and
retention mechanisms.
MULTIPLE MOUNTING OPTIONS
Install Tap almost anywhere in the room with Table and Riser Mounts that fit standard grommets and rotate
180° for visibility and convenience, or save table space in small rooms with the Wall Mount.
CLEAN INSTALLATION
Flexible cabling lets you locate Tap near participants for convenient operation while installing the host
computer in a cabinet, beneath a table, or behind a display.
SHARE EFFORTLESSLY
Bring instant content sharing via wireless or HDMI connections to video meetings rooms with Tap.
What's in the Box
- Tap Touch Controller
- Cat5e Kit
- - Logitech Tap Receiver
- - Dongle Transceiver
- - 100-240v Power Supply with International Adaptor Set
- - 2.97 m Cat5e Cable
- - 7.0 m Cat5e Cable
- HDMI 1.4a cable 2.0 m
- VESA Mounting Screws (4)
- Microfiber Cloth
- Documentation
Included Warranty
Logitech 2-year limited hardware warranty
Technical Specifications
DIMENSIONS
Height: 2.28 in (58 mm) Width: 9.6 in (244 mm) Depth: 7.0 in (179 mm) Weight: 2.76 lbs (1.25 kg)
Touch Screen
10.1” diagonal screen with 14° display angle Oleophobic and anti-glare coating 1280 x 800 resolution
PORTS AND INTERFACES
USB 2.0/3.0/3.1 Type C (to meeting room host system) USB 2.0 Type A (for accessory connection) HDMI input
(for 1080p video + audio content sharing) ⅛ in (3.5 mm ) 4 pole Headset Jack
General Specifications
Internal cable retention and strain relief system Integrated ultrasonic speaker Integrated PIR Motion Sensor
100mm x 100mm VESA FDMI (Flat Display Mounting Interface) Kensington Lock slots (2)
Compatibility
Windows 10 ChromeOS™ 80 and higher
Logi Collab OS
USB 2.0, 3.0, or 3.1 Type A port
Logitech Tap is certified or compatible as a touch controller for video conferencing room solutions Google Meet™ Microsoft
Teams Rooms on Windows RingCentral Rooms™ Zoom Room™ DisplayLink Plug and Display™: Tap connects via USB
as an additional display for supported operating systems, including Windows 10 and ChromeOS
