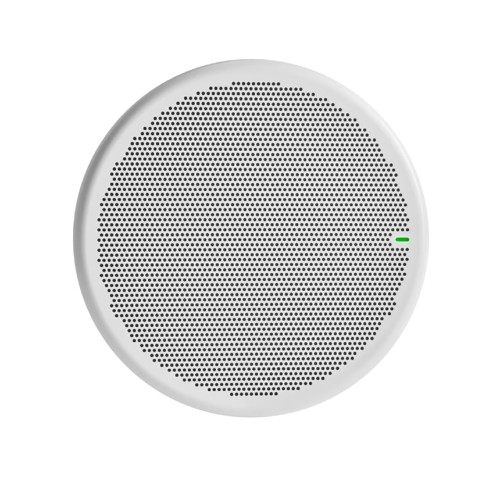

Shure MXA901 Conferencing Ceiling Array Microphone MXA901 provides superb AV conferencing audio in a discreet and stylish 13.5-inch round form factor that complements any interior design. Single-Zone Automatic Coverage™ technology captures talkers clearly with no setup. Use one MXA901 in smaller rooms or multiple units in larger spaces. Onboard IntelliMix® DSP delivers echo- and noise-free audio, while next-generation array architecture ensures natural speech and enhanced directional pickup. A Sleeker Take On Tech The Microflex Advance MXA901 Conferencing Ceiling Array Microphone is the most discreet approach to AV conferencing audio for meeting rooms. Its compact and stylish round form factor complements any interior design without drawing attention. Choose from white, black, or aluminum finishes, or paint the MXA901 to match your color scheme. Cover Everyone Single Zone Automatic Coverage™ technology requires no setup, and captures every talker in a 20 by 20 foot area out of the box. Use one MXA901 in small or medium-size rooms, or use multiple MXA901s to cover larger spaces. A variety of on-ceiling, in-ceiling, and suspended mounting options are available to suit different ceiling types. Cancel the Clutter Onboard IntelliMix® DSP includes echo-cancellation and noise reduction to eliminate annoying distractions. Automatic gain control adjusts talker levels so that everyone is heard clearly no matter where they sit. The built-in automatic mixer delivers a pristine audio mix to your favorite videoconferencing software.

• Coverage Area Size: 20 x 20 feet (6.1 x 6.1 meters)
• Coverage Type: Single-zone automatic
• Power Requirements: Power over Ethernet (PoE), Class 0
• Power Consumption10.1 W maximum: Control Software
• Cable Requirements: Cat 5e or higher (shielded cable recommended)
• Connector Type: RJ45
• Plenum Rating: UL2043 (Suitable for Air Handling Spaces)
• Dust Protection: IEC 60529 IP5X Dust Protected
• Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
• Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
• Microphone Elements: 85 MEMS
• Frequency Response: 100 Hz to 20 kHz
• Sensitivity: at 1 kHz
• Maximum SPL: Relative to 0 dBFS overload - 98.4 dB SPL
• Signal-To-Noise Ratio: Ref. 94 dB SPL at 1 kHz - 67.1 dB A-weighted
• Latency: Does not include Dante latency - 33.5 ms
• Self Noise: 26.9 dB SPL-A
• Dynamic Range: 71.5 dB

• RPM901-R-INSTALL KIT

Shure standard 1-years warranty
